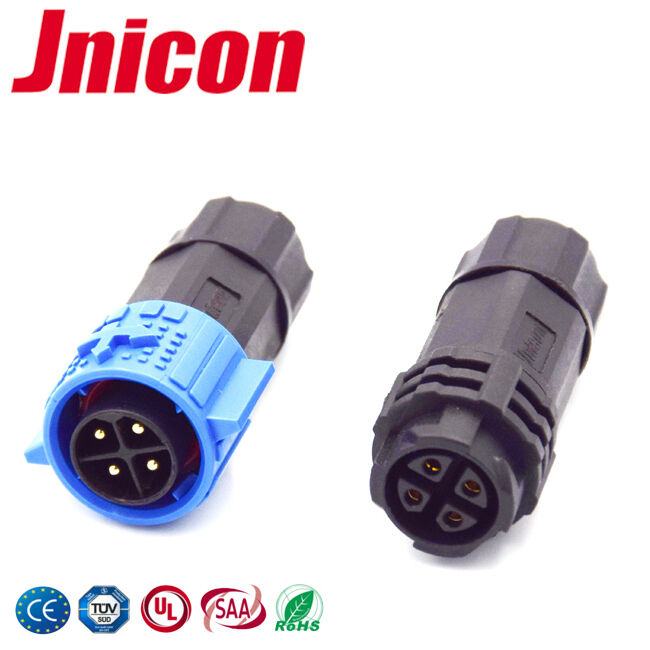

300V M19 Round Waterproof Connector Outdoor Power Connector 20A China

300V M19 Round Waterproof Connector Outdoor Power Connector 20A China

  • 300V M19 Round Waterproof Connector Outdoor Power Connector 20A China
300V M19 Round Waterproof Connector Outdoor Power Connector 20A China
Ürün ayrıntıları:
Menşe yeri: Shenzhen Çin
Marka adı: Jnicon
Sertifika: UL,TUV,CE,ROHS,CQC
Model numarası: M19
Ödeme & teslimat koşulları:
Min sipariş miktarı: 100 (10 Çift numune)
Fiyat: negotiable
Ambalaj bilgileri: 1. Plastik torba; 2. Karton; 3. Müşterinin gereksinimlerine göre
Teslim süresi: 3-5 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 10000/gün
İletişim
Detaylı ürün tanımı
Su Geçirmez Seviye: IP67 Nominal akım: 20A/300V Güç için
Kablo: 16-12AWG Sanayi Alanları: Endüstriyel Otomasyon/Yeni Enerji
Vurgulamak:

300V M19 waterproof power connector

,

outdoor waterproof connector 20A

,

M19 round connector with warranty

Push Pull IP67 Waterproof Connector With 3 Pin Male Female Plug Connector



Features to 3 pin waterproof connector

  • Push pull locking connection mode
  • Protection level: IP67
  • Connection method: soldering(welding),screw terminal
  • Assembly: male plug with female plug
  • Certification: UL,TUV,RoHS,CQC,CE
  • Function : power extension
  • Color: black, yellow, blue.



M19 3 pin waterproof male female connector could be well used for LED lighting, power extension,Audio video, elctrical equipments, automation machines,robot, ebike, motor etc.



M19 3 pin connector specification



Specifications:
Connecting mode: Push pull locking waterproof connector
Core number: 3 pin
Connector type : Assembly Panel mount connector
Connector color: Black, blue, yellow
Waterproof level: IP67
Cable specification: 20AWG-12AWG
Cable diameter range: 4.5mm-11mm
Contact diameter*No. Φ1.0-Φ2.4
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V



Application industries:
Stage equipment The smart grid LED lighting
Medical equipment Battery Automation
Solar energy equipment Ship equipment Agriculture



     3 pin waterproof connector's benefits :



1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.



2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.



300V M19 Round Waterproof Connector Outdoor Power Connector 20A China 0

300V M19 Round Waterproof Connector Outdoor Power Connector 20A China 1
