Name: M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M12
Price: 2.20 USD
Availability: InStock

Ana sayfa Ürünler Su geçirmez LED Konnektörler

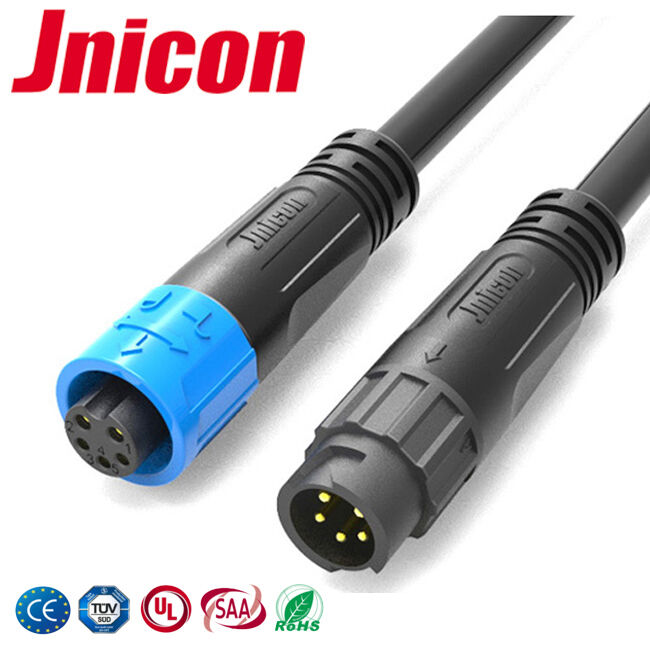

M12 IP67 Waterproof Outdoor Wire Connectors Quick Lock Molded Power Connector

Ürün ayrıntıları:

Menşe yeri:	Shenzhen Çin
Marka adı:	Jnicon
Sertifika:	UL , CQC , CE ,ROHS
Model numarası:	M12

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 (10 Çift numune)
Fiyat:	negotiable
Ambalaj bilgileri:	1. Plastik torba; 2. Karton; 3. Müşterinin gereksinimlerine göre
Teslim süresi:	3 ~ 5 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Yetenek temini:	10000 / gün

İletişim

Detaylı ürün tanımı

Ürün Adı:	M12 5 pinli konnektör	Mevcut Derecelendirme:	10A + 2A
Gerilim Değeri:	125V + 60V	IP Seviyesi:	IP67
Malzeme:	PA66,UL94-V0	tip:	Montaj Alanı İtmeli Kilit Konnektörü
Vurgulamak:	M12 waterproof wire connectors , quick lock power connector , IP67 outdoor LED connectors

5 Pole Waterproof Data Connector Quick - Lock High Durability Corrosion Resistance

Description of Waterproof Data Connector

1. 5 ( 2+3 )Pin connector , 2pin power supply , 3pin data supply .

2. Male and female electrical connector with cable .

3. Electrical wall washing waterproof data connector .

4. Optinal color for different environment .

The Reason for Choosing Our Product

1. We can provide the M12 5pin waterproof data connectors with great quality and best price
Free sample can be provide for testing first , then decide if make an order
We accept custom - made , whether it is connector , cable , carton or other special requirement .
Approved by UL , CE , CQC and other units validation test .

Specification of M12 5Pin Waterproof Connector

Product name	M12 5Pin connector
Current	10A+2A
Voltage	125V+60V
Contact diameter X number	φ1.5 +φ1.0
Withstanding voltage	1000V
Protection level	IP67
Cable Specification	1.0+0.5mm2
Diameter range	MAXφ9.0mm
Operating temperature	-40℃ - 105℃
Connecting mode	Qick - locking
Insulating parts	High - performance engineering plastics
Material of copper needles	Copper alloy
Flame - resistant rating	UL94 - V0
Color	Blue black
Application	Wall washing lgiht / tube light
Warranty	5 Years
