M16 10A 2+4 Pin Electrical Wire To Wire Connectors UL Multi Pin Connectors Waterproof

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Jnicon
Sertifika:	TUV, UL, 3C, CE, ROHS, ISO90001
Model numarası:	Su geçirmez LED Konektörü

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 (10 Çift numune)
Fiyat:	negotiable
Ambalaj bilgileri:	1. Plastik Çanta 2.Carton 3. Müşterinin gereksinimi başına
Teslim süresi:	3-5 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	10000 çift/gün

İletişim

Detaylı ürün tanımı

Ürün türü:

M16 2+4 Pin 10A/300V Su Geçirmez Konnektör

Kablo göstergesi:

20~18AWG

Temas çapı:

∅1,5 mm/sayı

Çalışma Sıcaklığı:

-40°C~105°C

Vurgulamak:

M16 waterproof wire connectors

10A multi pin connectors

UL certified LED connectors

M16 2+4 Pin Push Locking Waterproof LED Connector IP67 Dust Cover

More details of M16 2+4 Pin push locking Waterproof LED connector:

• The current/voltage rating of IP67 or IP68, waterproof LED connector are 10A/300V.
• multi-pins(2-8 pins) for varies industrial demands
• the copper needles of the LED connector is adopted gold-plated technology, which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

The specifiction of 2+4 pin 10A waterproof LED connector

SPECIFICATION
Designation		2+4 pin male female waterproof LED connector
Model No.		52-100211-01
Item		Specification
1. Electrical characteristics
1A	Contact Resistance		10mΩ max.

1B	Insulation Resistance		10MΩ min.

1C	Withstand Voltage		1500V AC There shall be no breakdown.

1D	Rating		10A 300V

2. Mechanical
2A	Mating/Unmating force		Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N

2B	Life test		Mating & Unmating 500 cycles

3. Material
3A	Contact Plating		1u" gold plating
3B	Contact material		Brass (C3604)
3C	Housing material		PA66
4. Environmental
4A	Flammability		UL 94V-0
4B	Operation temperature range:		-30℃~+80℃
4C	Preservative temperature range:		-40℃~+85℃

More detail:

• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• Screw locking style and push locking,easy to assemble.
• High current application safety and stable wire.

Application:

Waterproof LED connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.

It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

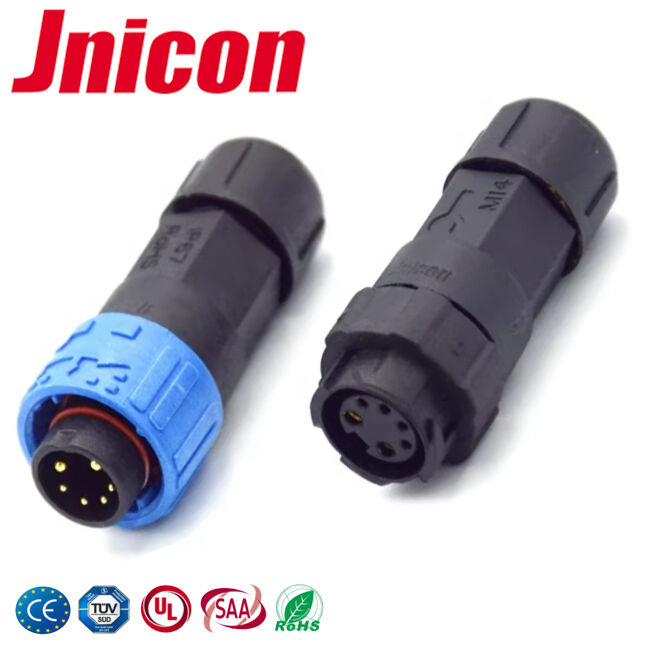

Product detail picture
