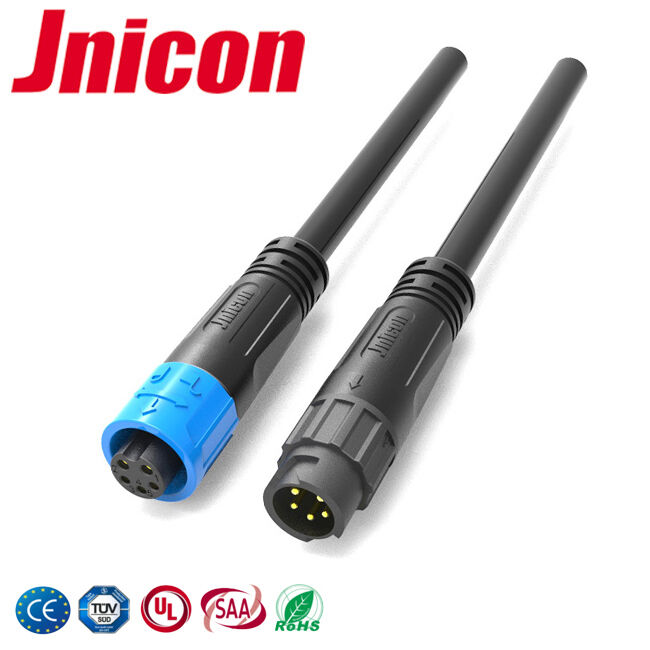

M12 IP68 Waterproof Circular Connectors , LED Lighting Waterproof Connectors
Details
1. Screw locking connection mode
2. Protection level: IP68
3. Overmolded connector, cable length could be customized per your requirements.
4. Assembly: assembly type, male and female connector.
5. Warranty: 5 years
6. OEM accepted.
M12 waterproof connectors is a universal option for different fileds, specially for led lighting, it's an economic connector with high performance and long service life. IP68 waterproof level could be well used for underwater or underground applications.
Technical information
| Waterproof level: |
IP68 |
| Cable specification: |
20AWG-16AWG |
| Cable diameter range: |
4.5mm-9mm |
| Rated current (A): |
10A |
| Operating voltage (AC.V.rms): |
500V |
Great suitable for industrial power connection, LED fixtures, agriculture, external wiring, CCTV, factory automation control, other places need waterproof power extension use.
Long service life to this outdoor waterproof cable connector, it could be used for 5 years-10 years at least.
| Application industries: |
| Stage equipment |
The smart grid |
LED lighting |
| Medical equipment |
Battery |
Automation |
| Solar energy equipment |
Ship equipment |
Agriculture |
IP67 connector's benefits:
1. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
2. With environmental protection material:high performance engineer plastic is good for environmental protection.
| Shell and insulated parts: |
High performance engineering plastics |
| Contact pin: |
Copper alloy(gold-plated) |
| Spring: |
Stainless steel |
| Sealing: |
Silica gel |
