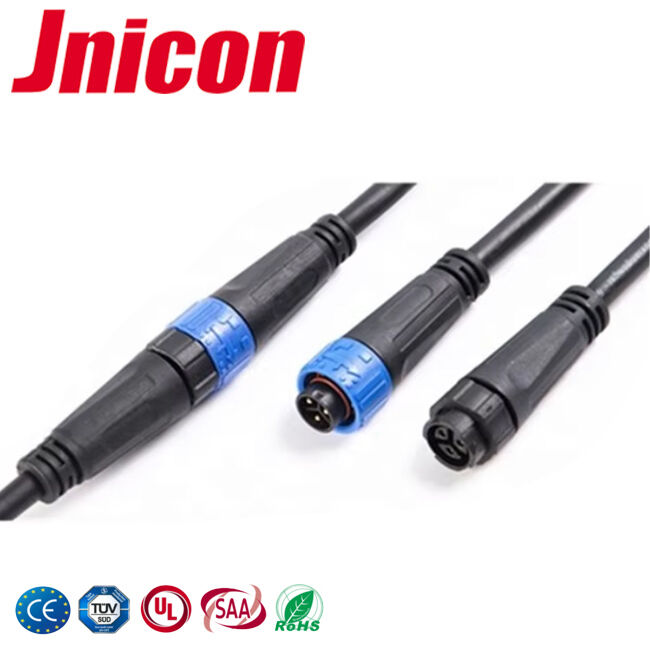

10A 300V M16 Waterproof Outdoor Cable Connector Industrial IP67 2 3 4 Pin Power Connector

10A 300V M16 Waterproof Outdoor Cable Connector Industrial IP67 2 3 4 Pin Power Connector

  • 10A 300V M16 Waterproof Outdoor Cable Connector Industrial IP67 2 3 4 Pin  Power Connector
10A 300V M16 Waterproof Outdoor Cable Connector Industrial IP67 2 3 4 Pin  Power Connector
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Jnicon
Sertifika: UL,TUV,CE,ROHS,CQC
Model numarası: M16
Ödeme & teslimat koşulları:
Min sipariş miktarı: 100 (10 Çift numune)
Fiyat: negotiable
Ambalaj bilgileri: 1. Plastik torba; 2. Karton; 3. Müşterinin gereksinimlerine göre
Teslim süresi: 3-5 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
İletişim
Detaylı ürün tanımı
Cinsiyet: Kablolu erkek dişi kutup numarası: 2, 3 ve 4 kutuplu mevcut
Bağlayıcı Türü: Aşırı kalmış kablo konnektörü Weetroof seviyesi: IP68
Nominal akım: 10pps Garanti: 5 yıl
Vurgulamak:

10A waterproof power connector

,

M16 industrial cable connector

,

IP67 outdoor electrical connector

IP68 Underground Electrical LED Cable Connectors With 10A Male Female



Main Features



  • Gold-plated contact, high performance of corrosion resistance and electrical
  • Conductivity effectively deal with temperature rise.
  • Screw locking connector,easy operation and installation
  • Dustproof cover design under off-working condition
  • Rated current is 10Amps
  • Protection level: IP68



Technical Data



Connector type : overmolded cable connector
Connector material: metal screw
Waterproof level: IP68
Cable specification: 20AWG-18AWG
Cable diameter range: 4.5mm-11mm
Rated current (A): 10A
Operating voltage (AC.V.rms): 500V



Cable length could be customized according to your requirements, multipins avaialble such as 2 pin,3pin and 4 pin, metal screw more durable and anti-corrosion, M16 B type is a very economic model for wall washer lights, wall washer bar.



Material



Shell and insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel



Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable, 5 years warranty is provided.



Popular Applications



  • Stage equipment
  • The smart grid
  • LED lighting
  • LED display
  • Medical equipment
  • Battery charing
  • Automation
  • Solar energy equipment
  • Ship equipment
  • Agriculture
